Deep drawing is a metal forming process used to produce complex, high-quality components from sheet metals. It is widely employed in industries to create parts like automotive components, kitchen sinks, and beverage cans. The deep draw process is crucial for producing components by transforming flat metal sheets into hollow, cylindrical, or box-shaped parts through the use of a punch and die cavity.
Sheet Metal Forming Process
Sheet metal forming is one of the most cost-effective and widely used methods in manufacturing, especially for mass production. It involves plastic deformation, where a sheet metal blank is reshaped under force without adding or removing material.
Deep drawing is a sheet metal forming process used when the depth of a part exceeds its diameter. This process allows manufacturers to form complex, hollow shapes, such as cups or cylinders, from flat metal sheets.
What is Deep Drawing?

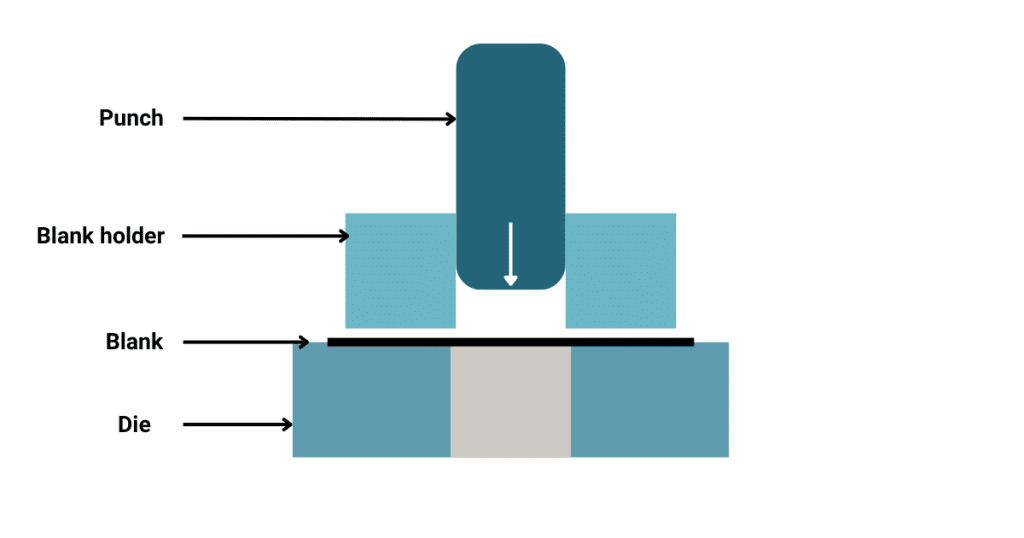

Deep drawing is a metal forming process where a flat sheet of metal (called a blank) is radially drawn into a forming die by the mechanical action of a punch. The sheet is pressed into the die, which gradually transforms the blank into the desired 3D shape.
Deep drawing is ideal for creating parts with significant depth and intricate shapes, such as cans, automotive body panels, and medical equipment housings.
Steps in Deep Drawing Process
There are four major steps involved in deep drawing processes.
1. Tool and Equipment Preparation
Efficient deep drawing requires high-quality dies, punches, and sheet metal holders. Ensuring the availability of these essential tools is crucial for the process.
2. Blanking
Since manufacturers can’t use entire sheet metal in deep drawing processes, so they might need to cut it into pieces before processing and the process is known as blanking.
3. Drawing

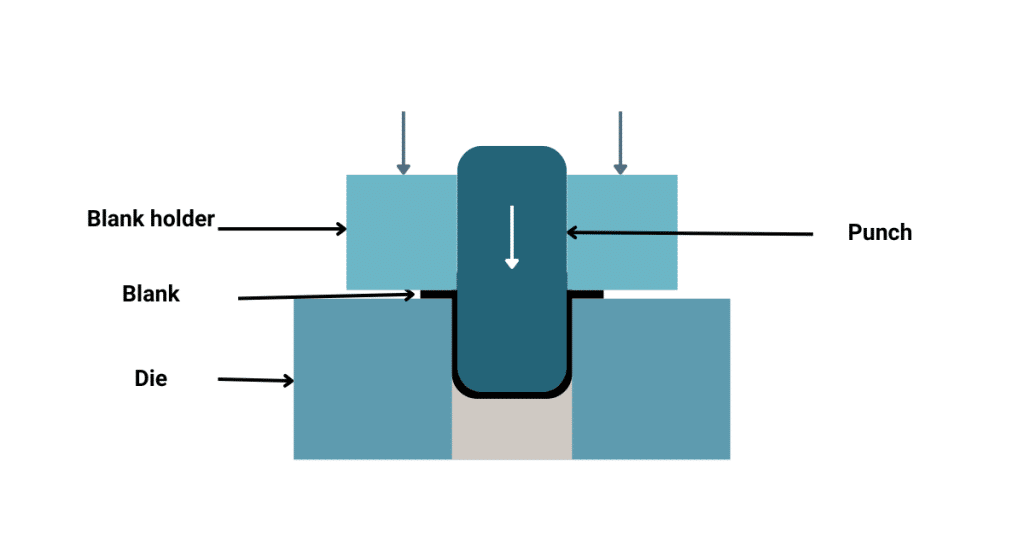

After blanking, the sheet metal pieces are ready for drawing. In this step, a punch pushes the metal blank, which is placed on a holder, into a die cavity. The metal takes on the shape of the die cavity during this process.
4. Trimming
After the process of drawing, you can inspect the quality of the processed part and may witness signs of edges around the part. Trimming removes these excess materials from edges.
Equipment and Tooling
Deep drawing requires specialized equipment and tooling to achieve the desired results. Central to this process are deep drawing presses, which are designed to apply the high forces and pressures necessary to shape the metal blank. These presses are robust and precise, ensuring consistent quality in the deep drawn parts.
Forming dies are another critical component. Made from hard, wear-resistant materials like steel, the forming die shapes the metal into the desired form. The punch, also made from durable materials, works in tandem with the forming die to push the metal into shape. Together, the punch and die define the final geometry of the deep drawn part.
Blank holders play a crucial role in maintaining the position of the sheet metal blank during the drawing process. By applying the right amount of force, blank holders prevent wrinkling and ensure smooth material flow. Lubrication systems are also essential, as they reduce friction between the metal and the tooling, facilitating a smoother drawing process and extending the life of the tools.
These components—deep drawing presses, forming dies, punches, blank holders, and lubrication systems—work together to create a seamless and efficient deep drawing process, enabling the production of complex and high-quality parts.
Material Selection for Deep Drawing
The material properties of the sheet metal, including its formability and thickness, play a pivotal role in the deep drawing process.
Metals with high ductility, such as low carbon steel, aluminum, and brass, are often preferred as they can withstand the stresses involved without fracturing. Brittle materials are unsuitable for deep drawing as they cannot undergo significant deformation without breaking.
Wall thickness also plays a crucial role in determining material formability and the maximum stress transfer during the deep drawing process.
Process Considerations
When designing a deep drawn part, several critical considerations must be taken into account to ensure successful production in addition to the material selection.
Tooling and setup costs are an significant factor. The design and construction of the forming die and punch can be costly, but these tools are essential for shaping the metal blank into the desired form.
Understanding the principles of ductility and metal flow is crucial to facilitate controlled material flow and avoid defects during the drawing process. When punch presses blank then material must flow evenly in the cavity for giving a uniform final shape to the product without tearing or wrinkling. You can control material flow with the help of blank holders by applying a uniform pressure to the entire metal sheet preventing it from buckling under radial load.
The size and shape of the sheet metal blank also impact the final deep drawn part. Properly sized blanks ensure efficient material usage and reduce waste. The punch and die shapes are meticulously designed to achieve the precise dimensions and complex shapes required. Additionally, the blank holder face shape influences how the metal flows during the deep drawing process, ensuring uniform deformation.
Corner radii and the amount of reduction in metal thickness are also vital considerations. Properly designed corner radii enhance the strength and durability of the deep drawn part, while controlled reduction in thickness ensures the part maintains its structural integrity.
Major defects in deep drawing
There are three primary defects to watch for and avoid.
1. Fracture
- Occurs when the sheet metal is subjected to stresses exceeding its maximum allowable limit
- Results in breaks or cracks in the final product
2. Wrinkling
- Caused by compressive stresses in areas where the workpiece is not properly supported
- Often due to insufficient blank holding force
- Can be prevented by increasing the holding force of blank holders
3. Earring
- Characterized by non-uniform edges on the surface of the deep drawn product
- Results from anisotropic materials with directional variations in strength
- Appears as a wavy pattern along the edges, resembling “ears”
These manufacturing defects can be mitigated through operational expertise and adherence to standard guidelines for deep drawing machines. Proper control of process parameters and material selection can significantly reduce the occurrence of these issues.
Benefits of Deep Drawing
Seamless Surface
Deep drawing produces parts with smooth seamless surfaces. This seamless surface is particularly advantageous for applications that require aesthetic finishes, such as kitchen sinks, automotive panels, or medical equipment housings. The smooth surface also helps improve corrosion resistance by minimizing areas where contaminants could accumulate.
Complex Shapes
Deep drawing allows for the production of highly intricate and complex shapes that would be difficult or impossible to achieve through other metal forming methods. The ability to form deep, hollow parts with complex geometries, such as cylindrical, conical, or rectangular shapes, makes deep drawing ideal for creating components like beverage cans, battery casings, and automotive body panels, all from a single metal blank.
Minimizing Material Waste
Deep drawing is highly efficient in material usage. Unlike machining processes that generate excess material as chips, deep drawing reshapes the entire sheet into the desired part with minimal material loss. The only waste is often from the initial blanking stage, and even that can be minimized through optimized blank layout. This efficiency leads to cost savings and sustainability in production.
Increased Strength
Deep drawing processes often result in parts with enhanced mechanical strength. As the metal is drawn and reshaped, it undergoes work hardening, which increases its tensile strength. This makes deep-drawn parts more durable and resistant to deformation, a critical feature for components like structural housings and safety-critical parts.
Energy Efficiency
Deep drawing is a cold-forming process, meaning it does not require high-temperature operations like casting or forging. This eliminates the need for thermal energy inputs, making the process more energy-efficient.
Consistent Quality
The precision and repeatability of the deep drawing process ensure consistent part quality across large production runs. Once the die and punch are set up, each part formed is nearly identical, which is crucial for industries like automotive and aerospace that demand strict adherence to dimensional tolerances and quality standards. This reliability makes deep drawing a preferred method for high-volume manufacturing.
Cost-savings
While the initial setup costs for dies and punches can be high, deep drawing becomes highly cost-effective in large-scale manufacturing. Once the tooling is prepared, the process operates with minimal material waste, low energy consumption, and high speed. The upfront die costs can be amortized over the production of thousands or millions of units, making it ideal for industries requiring high-volume production. While the initial setup for deep drawing can be expensive, the process becomes highly cost-effective for mass production due to its fast cycle times and minimal material waste.
Quick Forming Process
Deep drawing is faster than many other metal forming techniques, such as cutting, welding, or progressive stamping. Since the process is streamlined into a few efficient steps, it allows for faster cycle times, reducing labor costs and increasing production throughput. This speed advantage makes deep drawing an excellent choice for industries with high demand for quick turnaround times, like packaging or consumer goods.
Comparison of Deep Drawing with Other Forming Techniques
Stretching
Stretching is a process where sheet metal is pulled over a die to expand its surface area, causing the material to thin. Unlike deep drawing, which forms deep parts with minimal thinning, stretching primarily creates shallow, contoured shapes like automotive panels or aircraft skins.
Roll Forming

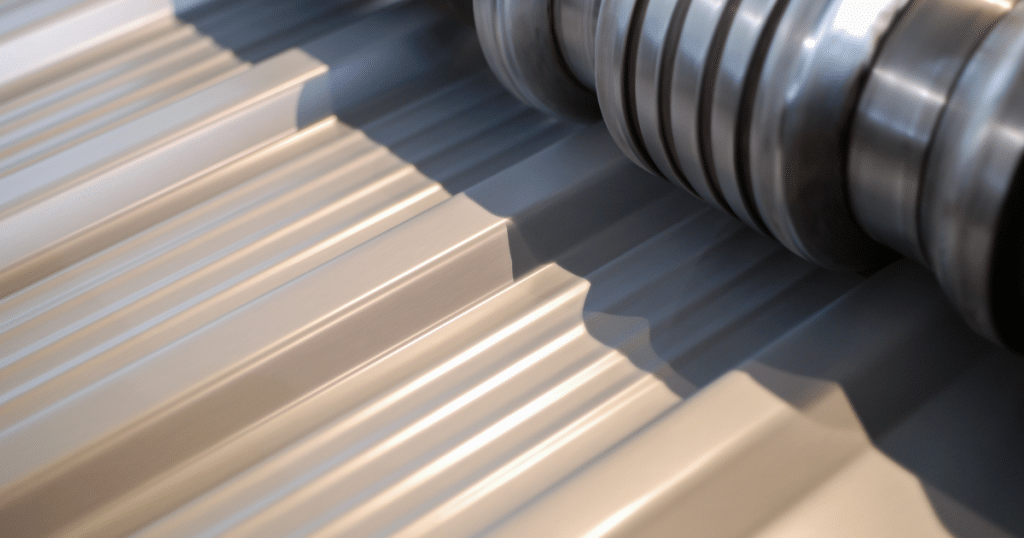

Roll forming is a continuous bending operation in which a long strip of sheet metal (typically coiled) is passed through consecutive sets of rolls, each performing incremental bending until the desired cross-sectional profile is achieved. This process does not form hollow shapes like deep drawing but instead alters the thickness and increases the overall length of the sheet. Roll forming is typically used to create long, uniform shapes, such as metal roofing, automotive trim, or structural beams. The key difference is that roll forming is ideal for producing consistent, linear profiles, while deep drawing is designed for creating complex, deep, hollow parts.
Extrusion

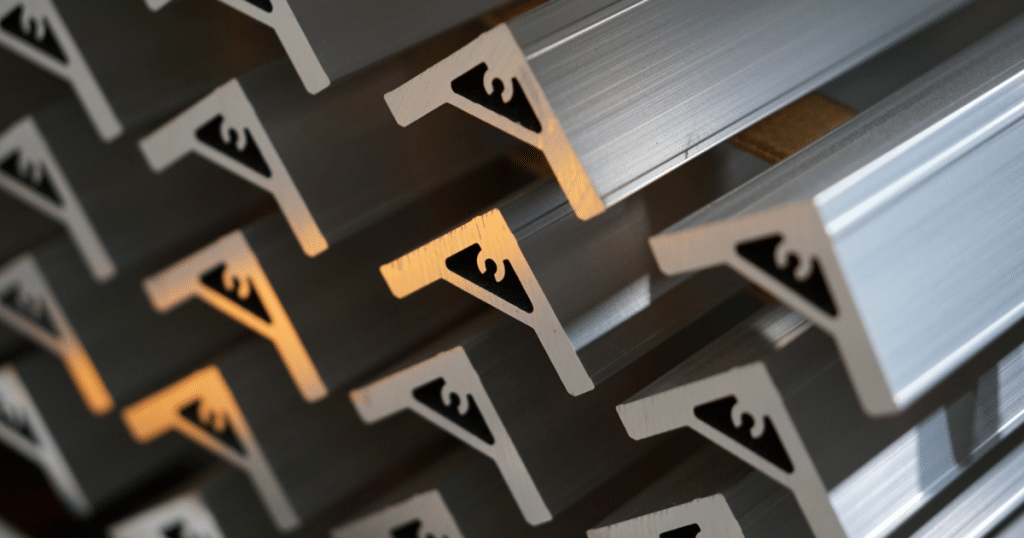

Extrusion is a forming process in which a metal billet or bar is pushed through a die to produce long parts with a constant cross-sectional profile, such as rods, tubes, or channels. The metal is forced through the die under high pressure, and the shape of the die determines the cross-sectional profile of the final part.
Unlike deep drawing, which forms hollow or deep parts from flat sheets, extrusion typically produces solid parts or tubular shapes with uniform cross-sections. While both processes use dies, extrusion is primarily used for materials with a fixed profile over a long length, making it suitable for creating continuous parts like piping, rails, and structural components.
Stamping
Stamping is a metal forming process in which a flat sheet of metal is placed into a stamping press, where a tool and die form the sheet into the desired shape through a single or series of strikes.
While deep drawing is a specific type of stamping used to form deeper and more intricate shapes, traditional stamping methods are typically used for shallower parts. Stamping is often employed to make flat parts or parts with limited depth, such as brackets, panels, and covers.
Frequently asked questions:
What is an example of a deep-drawn product?

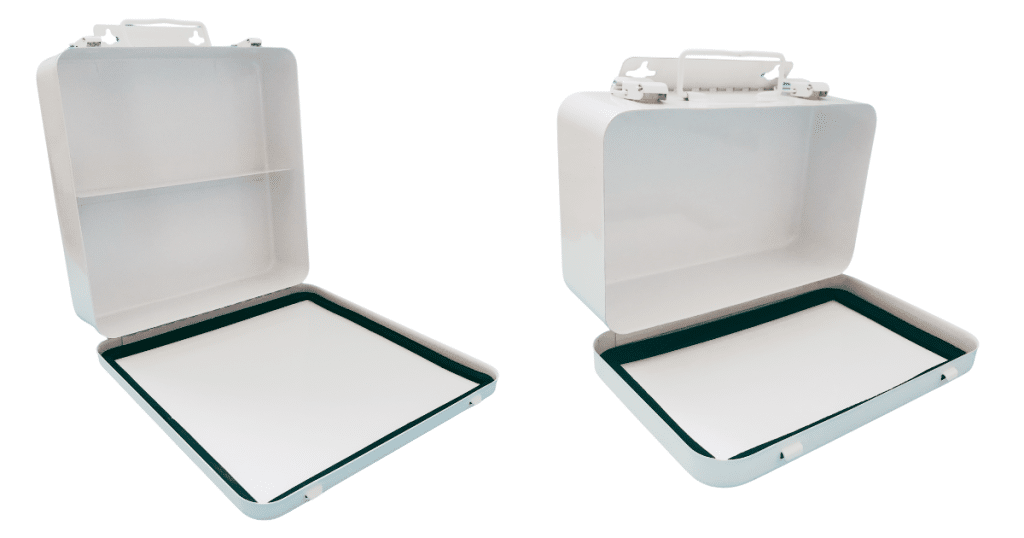

Metal box bodies with seamless corners, as shown in the pictures below, are an example.
We manufacture these metal box bodies through deep drawing in our facility. After this process, we weld hinges, brackets, handles, and latches to the body. Finally, we powder coat the entire box, completing the production of a metal first aid storage box.
Is deep drawing an expensive process?
Machines and tools are expensive, but manufacturing costs are low. It is cost-effective for large scale manufacturing.
What metals are best for deep drawing?
Aluminum, brass and Low carbon steel are suitable for the deep drawing process.
What is the difference between deep drawing and punching?
Punching is a process where a tool punches out a portion of sheet for the creation of holes whereas deep drawing used for the creation of hollow or complex shapes such as beverages cans.
Conclusion
Deep drawing is a complex and highly specialized process that requires careful consideration of various factors, including material properties, tooling and setup costs, ductility and metal flow principles, and the right equipment and tooling. By understanding these factors and employing advanced techniques, manufacturers can produce high-quality deep drawn parts with intricate shapes and precise dimensions.
The deep drawing process is indispensable in industries such as automotive, aerospace, and consumer goods, where the demand for complex shapes and high-quality components is ever-growing. By mastering the deep drawing process, manufacturers can achieve significant cost savings, improved efficiency, and consistent quality, making it a cornerstone of modern manufacturing.
